Shutter with adjustable blinds
PRODUCT ADVANTAGES

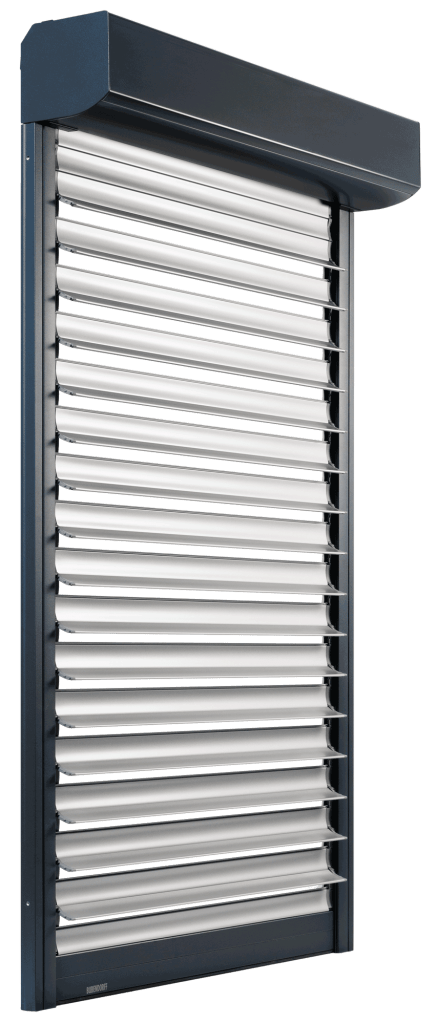

View to the outside with the adjustable blinds
The MONO electric roller shutter with adjustable blinds allows you to control the amount of light entering your home and ventilate it safely. An innovation from Bubendorff, an option you won’t regret.
- Safe ventilation
- Light dosing
- Privacy and sun protection
The innovation that sets new standards for roller shutters

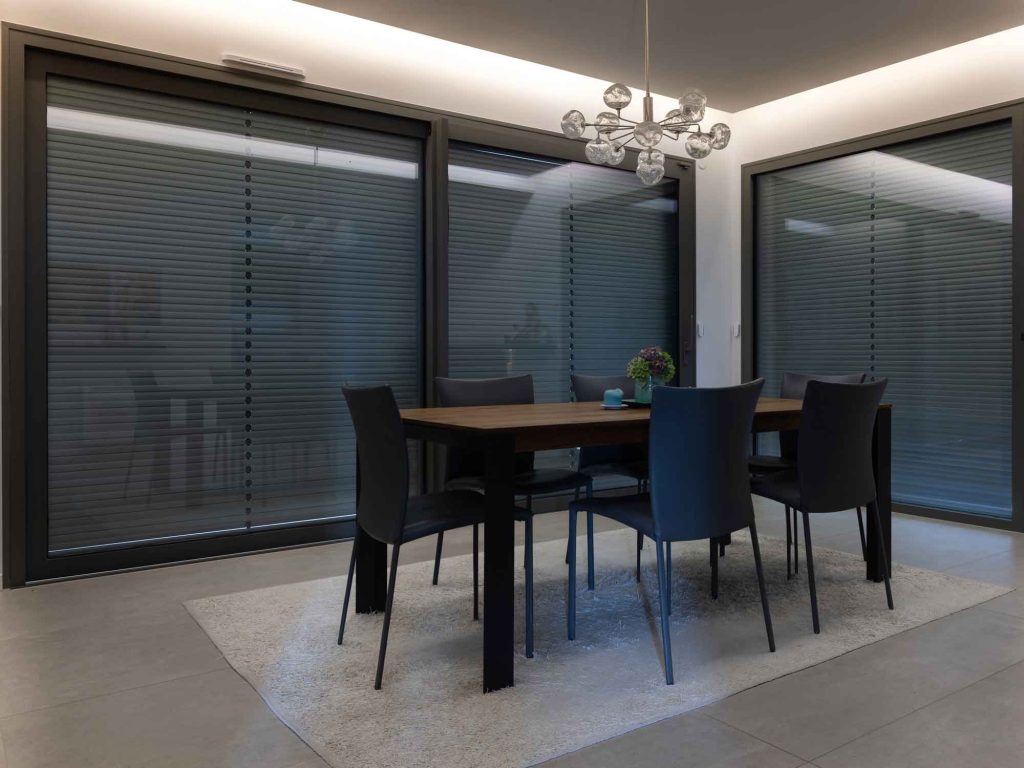

The position with closed blinds offers better thermal insulation in winter and more darkening, while at the same time a slight glow of light is perceptible.
You have the option of controlling the roller shutter slat by slat and you can also close the curtain halfway.

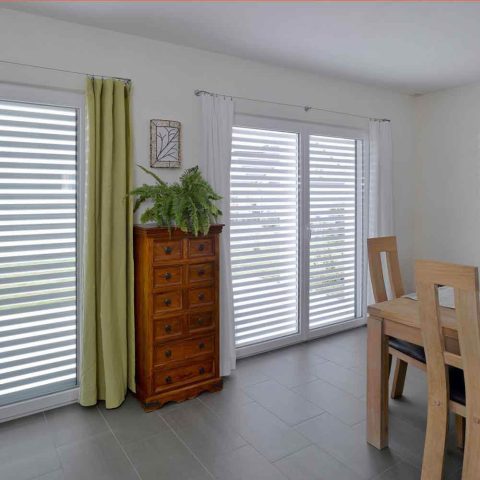

Thanks to the open-blinds position, you won’t be sitting in the dark on hot summer days. The MONO electric roller shutter with adjustable blinds transforms into an external venetian blind that lets daylight in while protecting you from both heat and prying eyes.
At night, the open slats and automatic locking of the roller shutter with adjustable slats allow the home to be ventilated with the same security as a classic roller shutter.
A roller shutter with a three times higher service life
Bubendorff is the only brand that tests its aluminium roller shutters and their drives with 30,000 up and down movements. This is three times longer than the highest requirement of the DIN-EN 13659 standard (10,000 openings and closings).
This extraordinary longevity is the result of careful development and quality control throughout the entire production cycle.
An electric designer roller shutter
The box of the MONO electric front-mounted roller shutter has no visible screws and its particularly compact design ensures maximum daylight when the electric roller shutter is open.
From the design to the completion of the roller shutters and their drives, unrivalled care is taken at every stage of production to ensure that you will be happy with your MONO electric roller shutter for a long time to come.
Pleasantly cool in summer, cosy and warm in winter
IN WINTER
- Roller shutter closed at night: the heat stays in the house.
- Roller shutter open during the day: free heat supply.
IN SUMMER
- Roller shutter closed during the day: keeps the rooms cool.
- Roller shutter half open at night: Cooling of the living space.
Remote controls : uncomplicated and precise
- The stylish and ergonomic Bubendorff remote controls for the MONO electric roller shutter with blind function offer a high level of operating convenience.
- Simple everyday operation and an optimum user experience: with a group remote control or a control with timer, you can operate one or more roller shutters at the same time or plan the opening and closing times in advance.
Your home control solution : iDiamant with Netatmo
With iDiamant with Netatmo, you can control your Bubendorff MONO solar roller shutters remotely by phone or tablet PC (programming of scenarios, individual or group control of up to 30 roller shutters).
You can also manage other devices, such as garden and garage doors, lights, sockets, thermostats, ventilation systems … and your entire home.
Carefree package : up to 10 years
Choose a carefree package : 5 years, 7 years or 10 years when purchasing your electric roller shutters from a specialist dealer.
The service package guarantees you free delivery of spare parts by your specialist dealer should a problem occur during the term.
Your other benefits : extended corrosion protection of the aluminium slats at sea, special offer for smart home control.
Ask your specialist dealer about the carefree package when you buy your roller shutter.
Bubendorff, a truly exceptional roller shutter manufacturer
The Bubendorff family business is one of the few manufacturers that designs its aluminium roller shutters – including those with adjustable slats – and its electric drives itself. In concrete terms, this means a better CO2 balance and unrivalled quality control.
Your roller shutters with adjustable slats will still work just as well in 2050 as they do today.

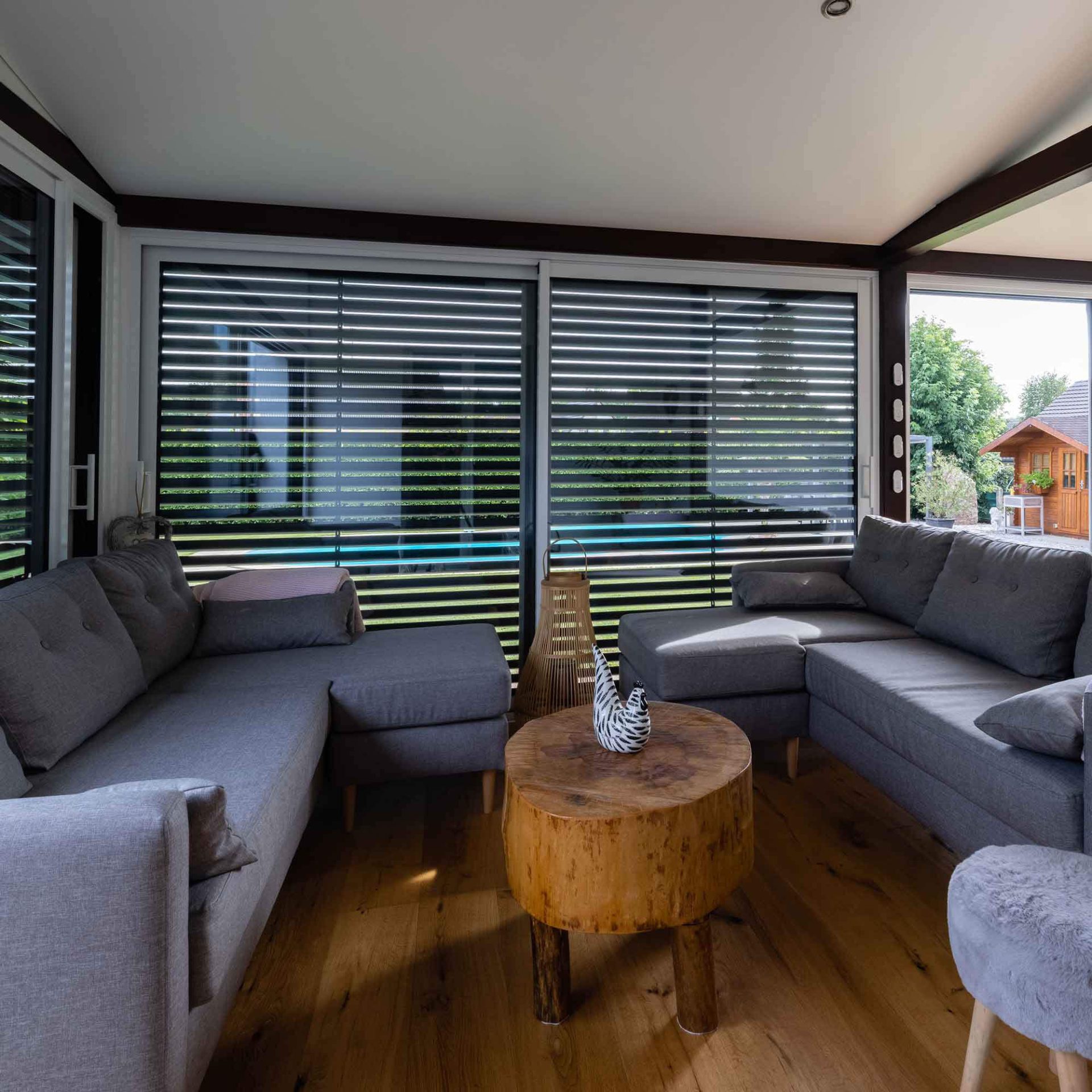

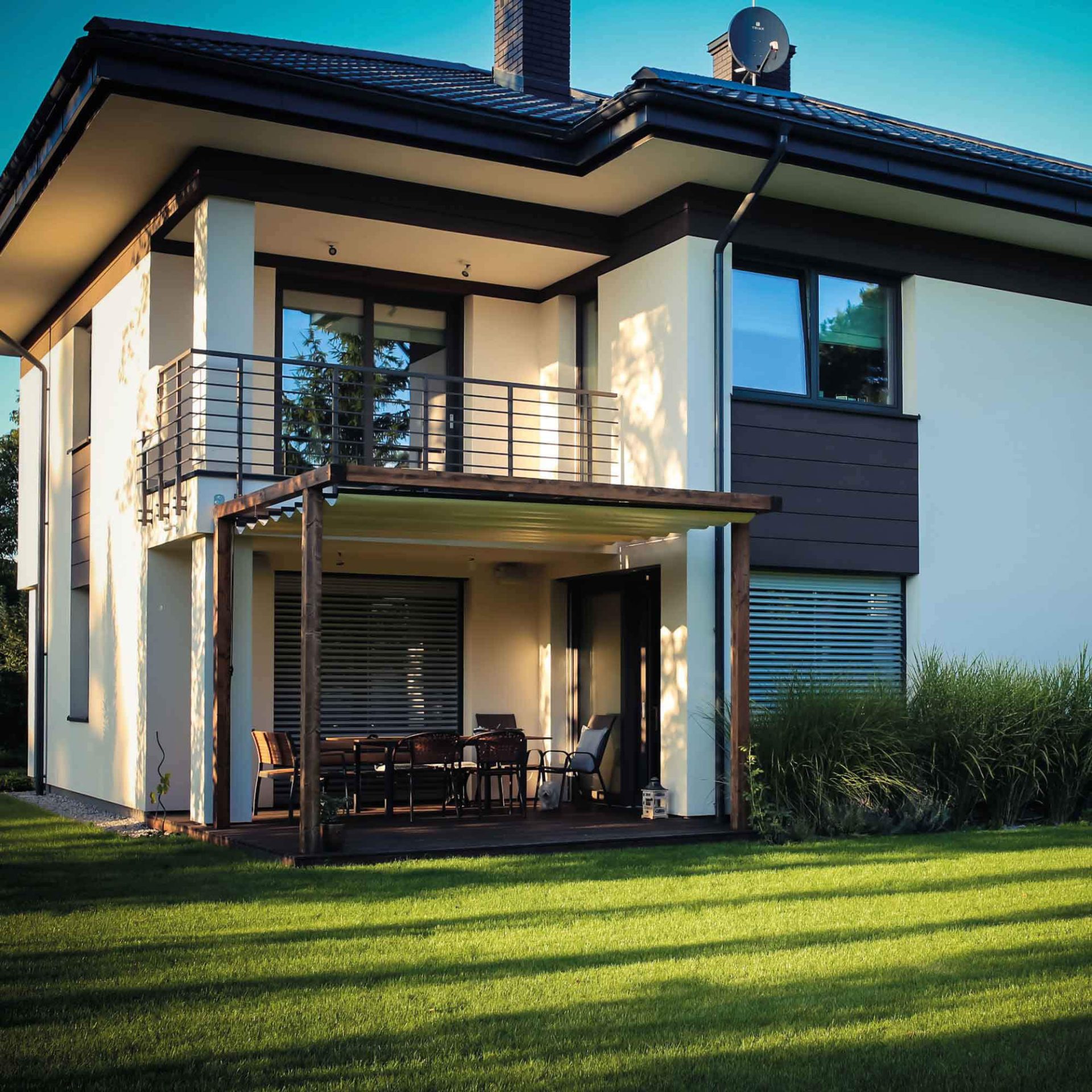

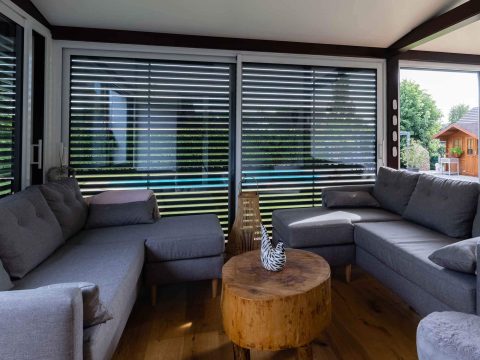

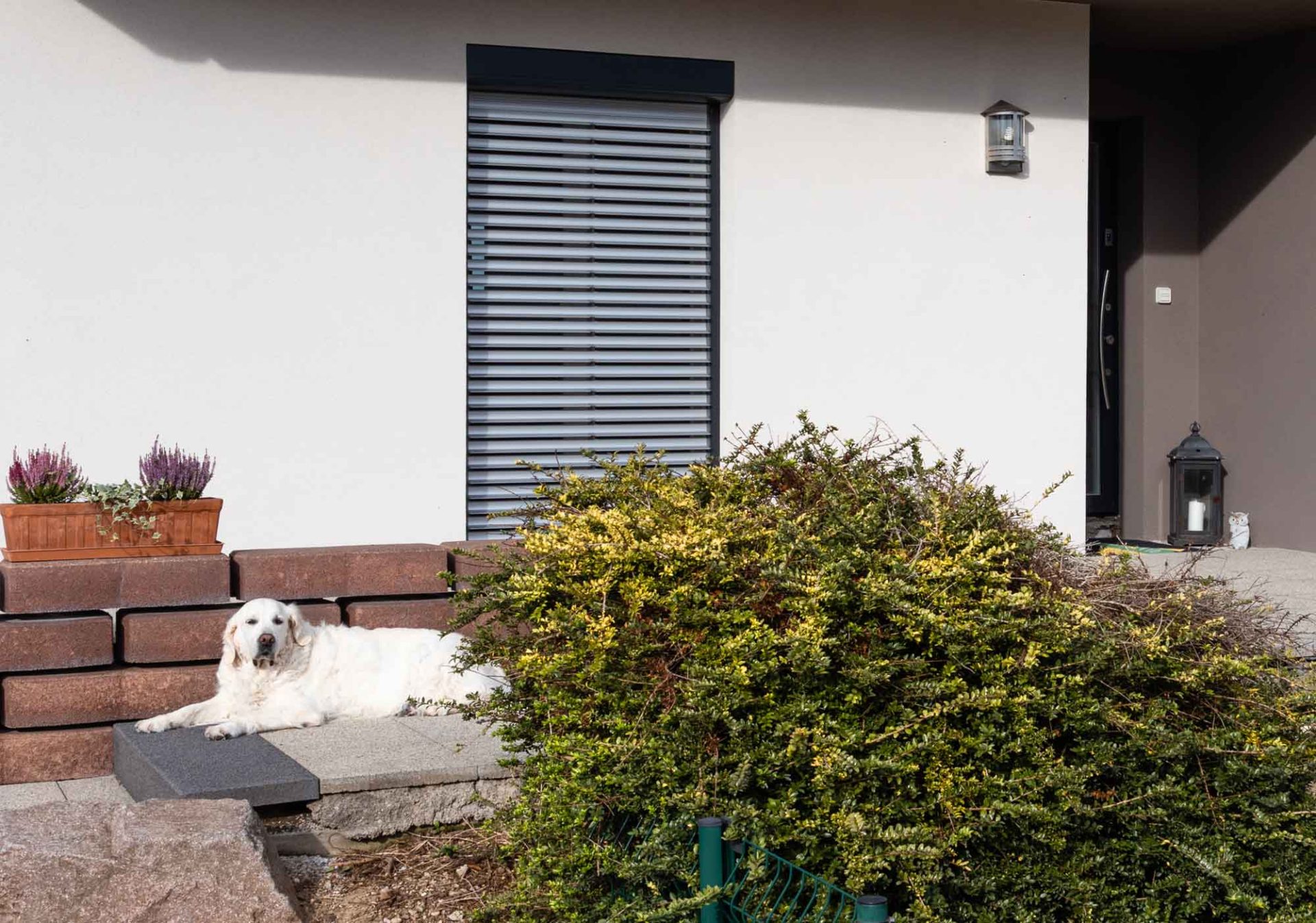

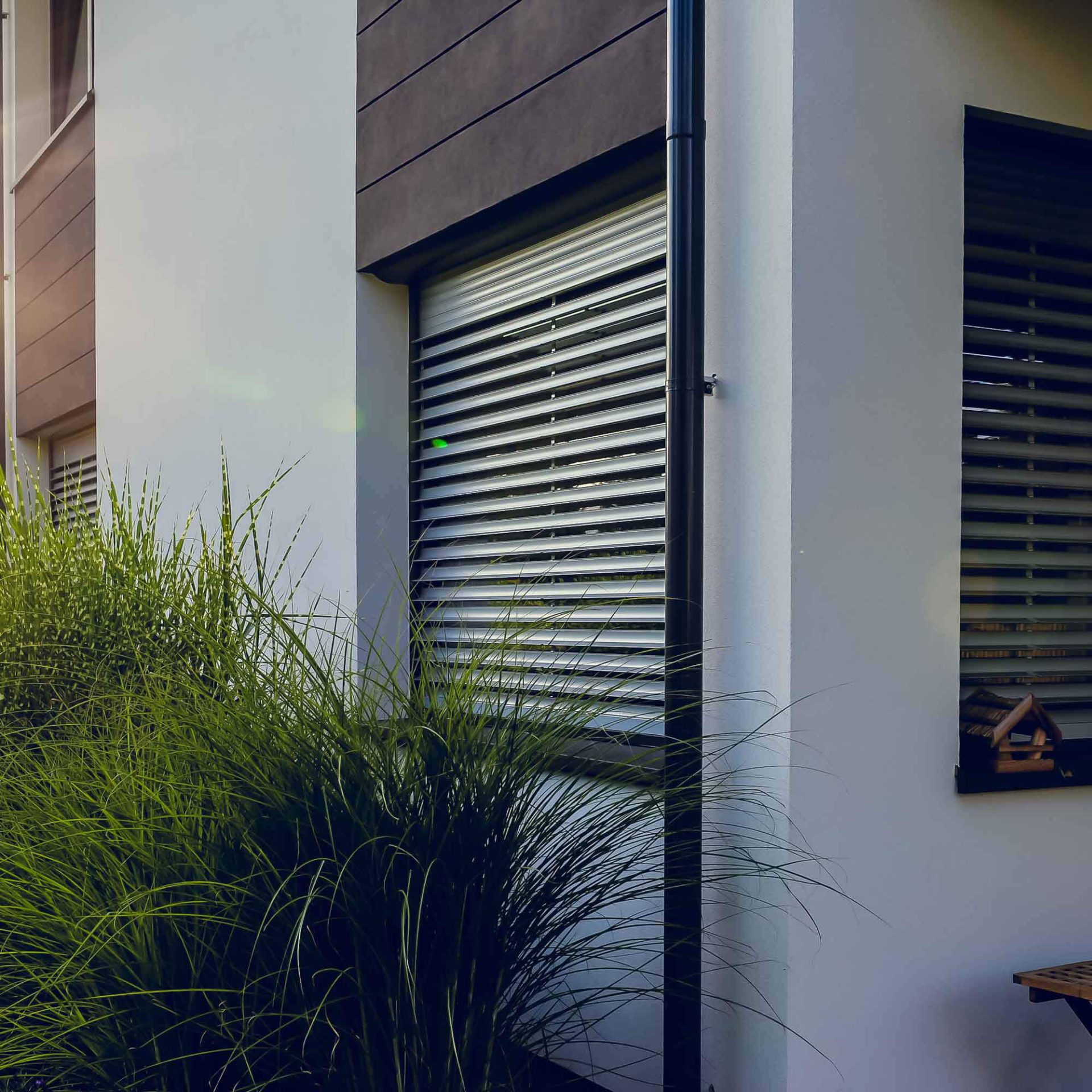

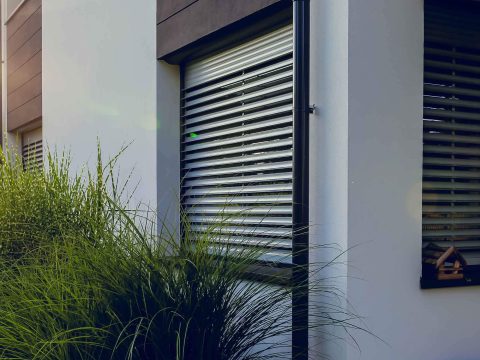

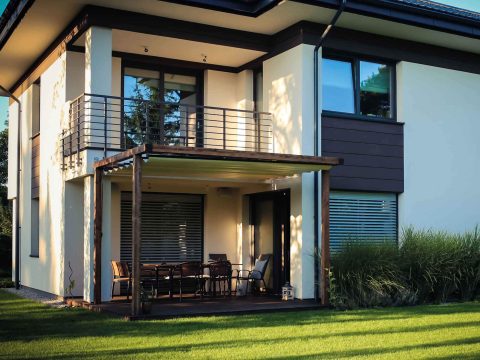

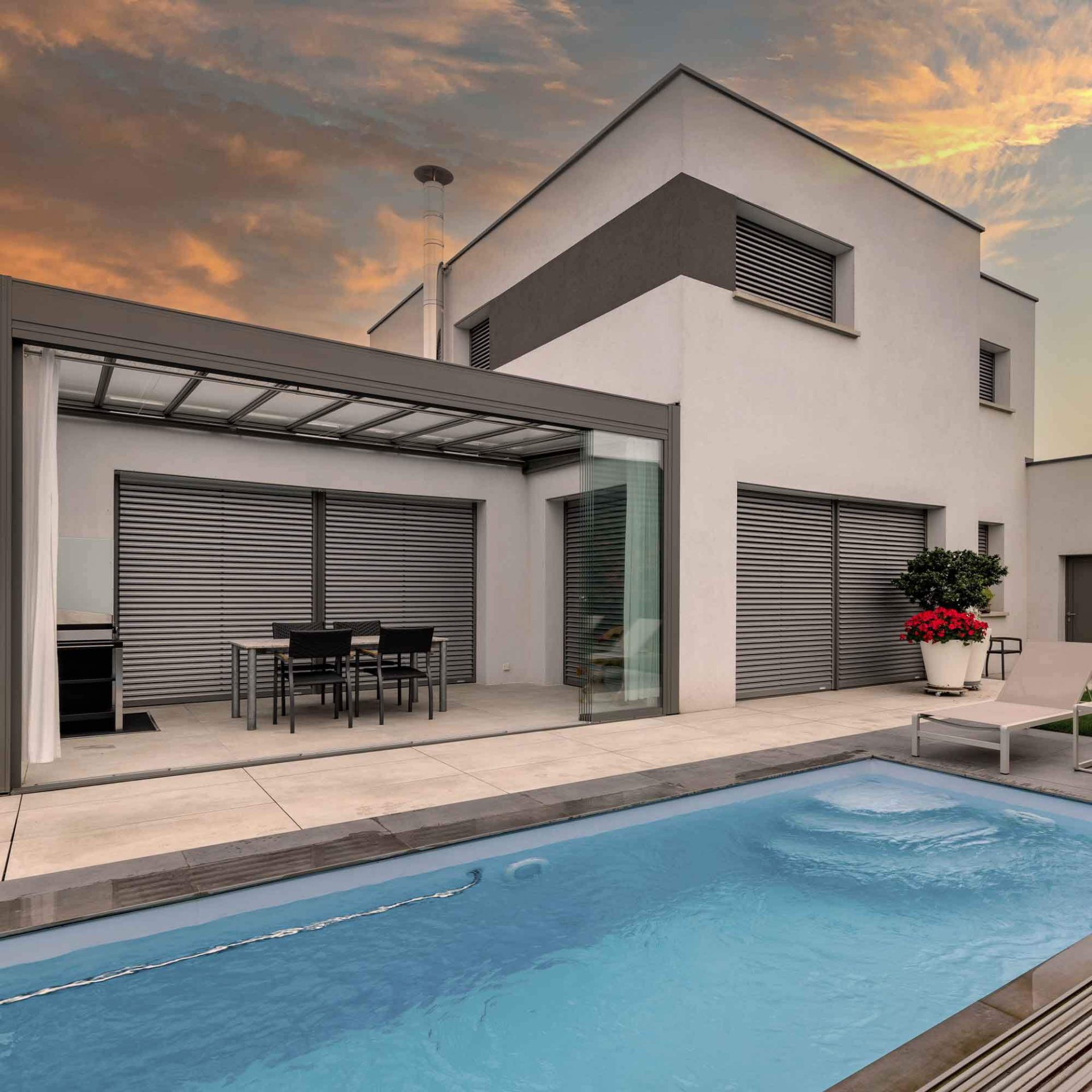

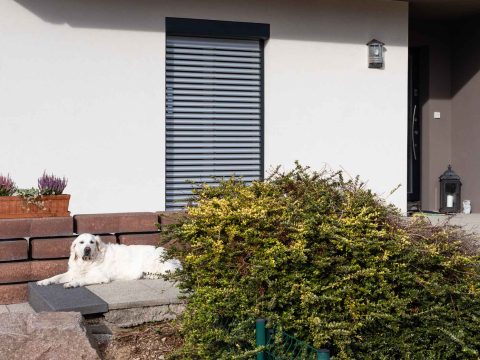

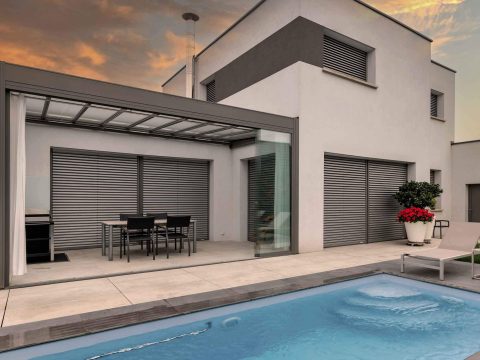

Our projects
-
Included with your MONO roller shutter with adjustable blinds:
Included:
- Bubendorff aluminium roller shutters with particularly high corrosion resistance
- Bubendorff radio wired drive, tested for at least 30,000 openings and closings, silent operation
- Installation by a specialist
- No visible screws
- Up to 10 years carefree package (optional)
- Stylish and ergonomic 3-button remote control
- Minimal environmental impact thanks to the Bubendorff commitment
- Unit price regardless of colour or size (up to 3 meters)
-
Technical data of your MONO roller shutter with adjustable blinds:
Product
Dimensions
Width up to 3 m
Height up to 2.50 mColours
3 shades for the roller shutter curtain and 8 shades for the framing: more than 24 possible combinations
Drive
Bubendorff radio Hybrid 2-wire Class II AC-charged drive. Works even in case of power failure thanks to its built-in backup battery.
Bubendorff radio 2-wire Class II AC-charged MR drive.
All Bubendorff drives are designed to adapt perfectly to Bubendorff roller shutters.
Security
Automatic locks against lifting
Mechanical lifetime (roller shutter + drive + battery)
30,000 openings and closings.
This is three times more than the highest requirement of the DIN EN 13659 standard (10,000 openings and closings).
Warranty & Carefree package
2 years warranty
+ up to 10 years Carefree package on all components (optional)Production countries
France and Germany
Certifications
NF Fermetures et Stores No 321-123 and 327-123 (French standard for roller shutters, corresponds to DIN EN 13 659) 14,000 cycles (class E*4)
NF Électricité (French standard for electrics)
CE markingEnvironmental product declaration
PEP ECOPASSPORT n° BUBE-00001-V01.04-FR
The Bubendorff advantage
- CO2 balance:
CO2 impact: 71 kg CO2
CO2 savings: 126 kg CO2 during the roller shutter life cycle

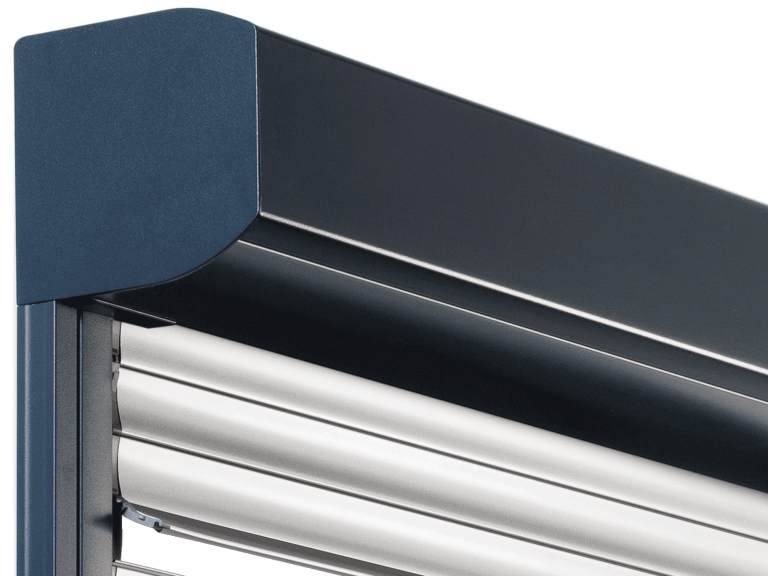

Box
Material
Profiled aluminum housing with reinforced corrosion protection
Box shape
1 x 20° (1 round part) or 2 x 20° (2 round parts)
Box dimensions (in mm)
Height (H) x Depth (D): 130 x 147 or 165 x 182
New construction
Also available in TRADI version for tunnel boxes and traditional boxes
The Bubendorff advantage
Design without visible screws
Roller shutter curtain
Material
Roller shutter curtain made of double-walled, perforated aluminium profile with CFC-free insulating foam
Guide pin
Equipped with an anti-flexion system in stainless steel providing security and increased wind resistance
Adjustable blinds
Combines the fine control of the light incidence of a venetian blind with the safety and durability of a roller shutter
The Bubendorff advantage
Reinforced corrosion protection
Guide rails
Material
Guide rails made of extruded aluminium
Seal in the guide rail made of thermoplastic elastomer with long service lifeDimensions (in mm)
45 x 26
The Bubendorff advantage
Guide rails and end slat textured, with long service life according to ISO 16474-2:2013
Control and automation
Included remote control
3-button remote
Optional additional remote control
Group remote control to control up to 30 shutters
Optional remote control with timer
Group remote control for controlling up to 30 roller shutters with time programming
Optional intelligent shutters / home automation
iDiamant with Netatmo: Smart Home module for remote control of Bubendorff wireless shutters via smartphone and Legrand Home+control App
Optional wall mount
Wall bracket for 3-button remote control and aditional remote control
The Bubendorff advantage
Aesthetic remote controls. Simple and intuitive control.
