ROLAX Solar

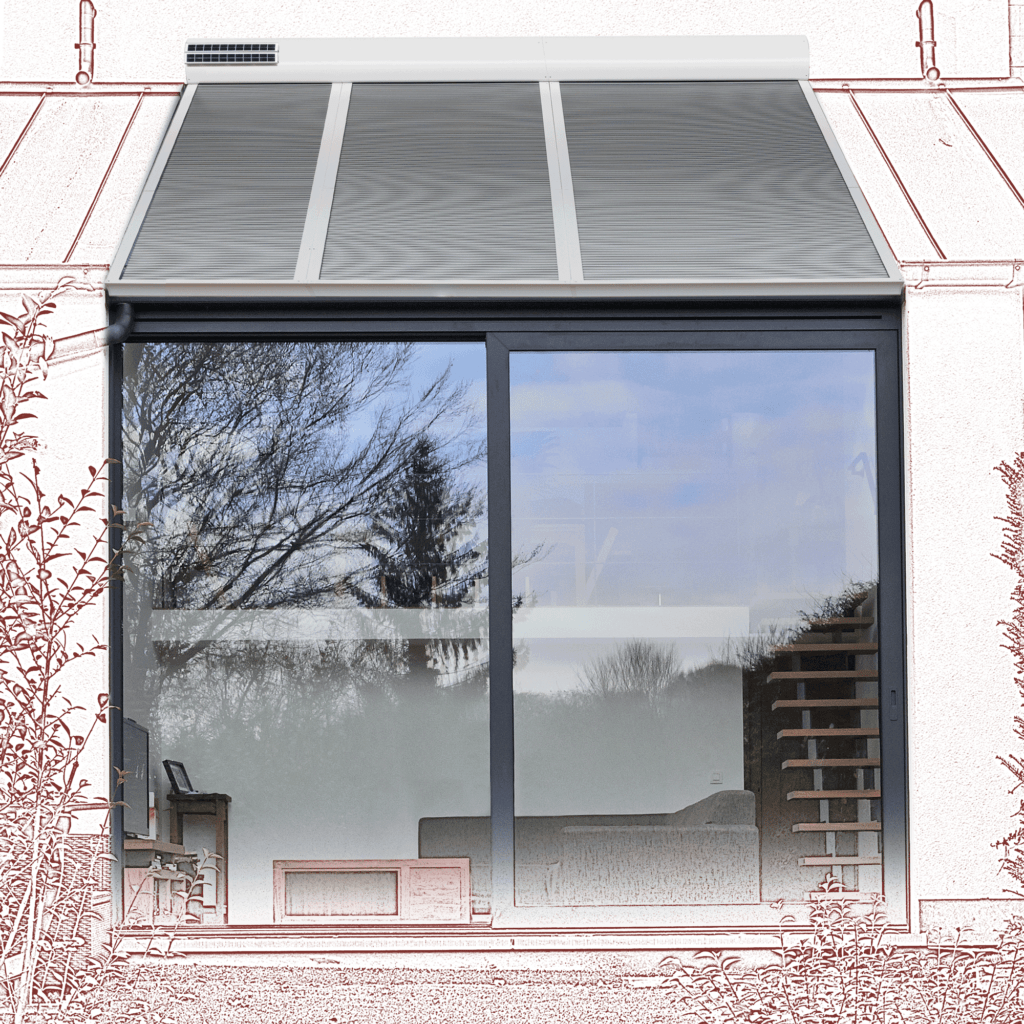

ROLAX, the heat protection for your conservatory or glass roof
ROLAX acts as protection against solar radiation and cold in both summer and winter, so that you can enjoy your conservatory or glass roof all year round.
The aluminium slats with connection seal ensure optimum resistance, even in frosty conditions.
With ROLAX, you can use your room all year round.
Elegant quality
With its wide range of colours and its compact box, which not only houses the technology but is also an attractive design element with its curved lines, ROLAX blends harmoniously into any roof.
- A beautifully shaped box :
With its shape, the box blends into any architectural style, whether modern or classic.
- High quality workmanship :
The box is designed to permanently withstand the weather. A wall connection and a cover for the side seal round off the ROLAX roller shutter.
- Wind protection :
The lower part of the ROLAX roller shutter has a wind-repellent effect and reinforces the resistance of the structure.
Three reasons why you should choose a Bubendorff solar roller shutter
1. RELIABILITY
The ROLAX solar roller shutter is installed without any connection work and works all year round, in summer and winter, without a spare charger
2. PURE EASE OF INSTALLATION
Make installation easier for yourself with our solar roller shutter without any time-consuming electrical work. Rely on the expertise of our trained specialists who have specialised in Bubendorff products to ensure a long service life.
CLIMATE+ MODE®

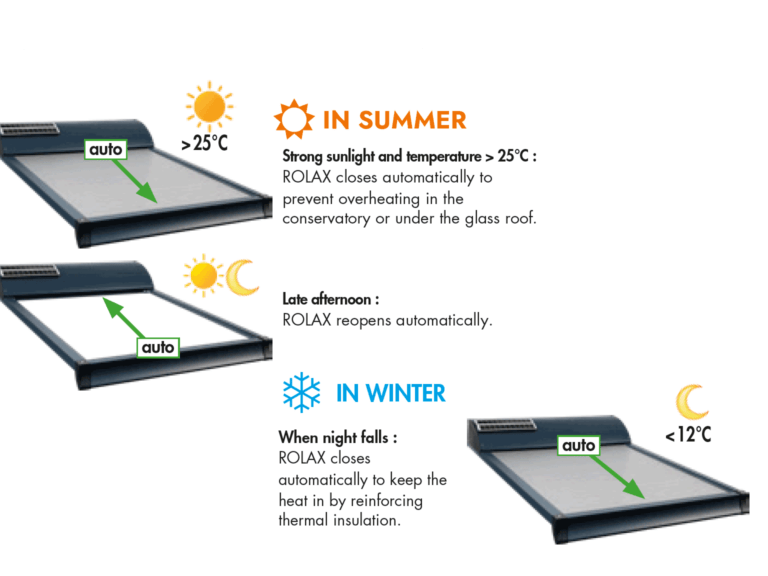

The CLIMATE+ mode opens and closes the roller shutter depending on solar radiation and temperature. This optimises the thermal insulation of your home, saves energy, increases comfort and protects the environment.
CLIMATE+ Mode® : let our intelligent solution work for you
Activate the CLIMATE+ mode with the Bubendorff remote control. The ROLAX Solar roller shutter then adapts its position to the weather. This improves your indoor comfort and reduces your electricity costs for air conditioning and heating.
Bubendorff is the only manufacturer to offer this intelligent automatic control for all its solar-powered conservatory roller shutters, at no extra cost, without a smart home box and without complicated settings.
Pleasantly cool in summer, cosy and warm in winter
IN SUMMER
- ROLAX roller shutters closed during the day: keeps the rooms cool
IN WINTER
- ROLAX roller shutters closed at night: the heat stays in the house.
- ROLAX roller shutter open during the day: free heat supply.
Convenience with remote controls from Bubendorff
Elegant and intuitive remote controls from Bubendorff for a simple and pleasant user experience with your ROLAX roller shutters.
For optimum convenience, you can use group remote controls or time programming to operate one or more roller shutters (ROLAX or others) simultaneously or programme the opening and closing times.
Your smart home solution iDiamant with Netatmo
Use iDiamant with Netatmo to control the opening and closing of your ROLAX Solar roller shutters from Bubendorff via your smartphone or tablet (programming of scenarios, individual or group control of up to 30 roller shutters).
You can also manage other devices, such as garden and garage doors, lights, sockets, thermostats, ventilation systems … and the whole house.
Carefree package : all-round care
Choose a carefree package : 5 years, 7 years or 10 years when purchasing your ROLAX solar shutters from a specialist dealer.
The service package guarantees you free delivery of spare parts by your specialist dealer should a problem occur during the term.
Your other benefits : extended corrosion protection of the aluminium slats at sea, special offer for smart home control.
Ask your specialist dealer about the carefree package when you buy your roller shutter.
Bubendorff, an exceptional roller shutter manufacturer.
Bubendorff is the only manufacturer that produces both its conservatory roller shutters and its drives in-house. This results in a low CO2 footprint and exceptional quality control of your ROLAX.
Our goal : Your roller shutters should still work the same way they did on the first day, even after decades.

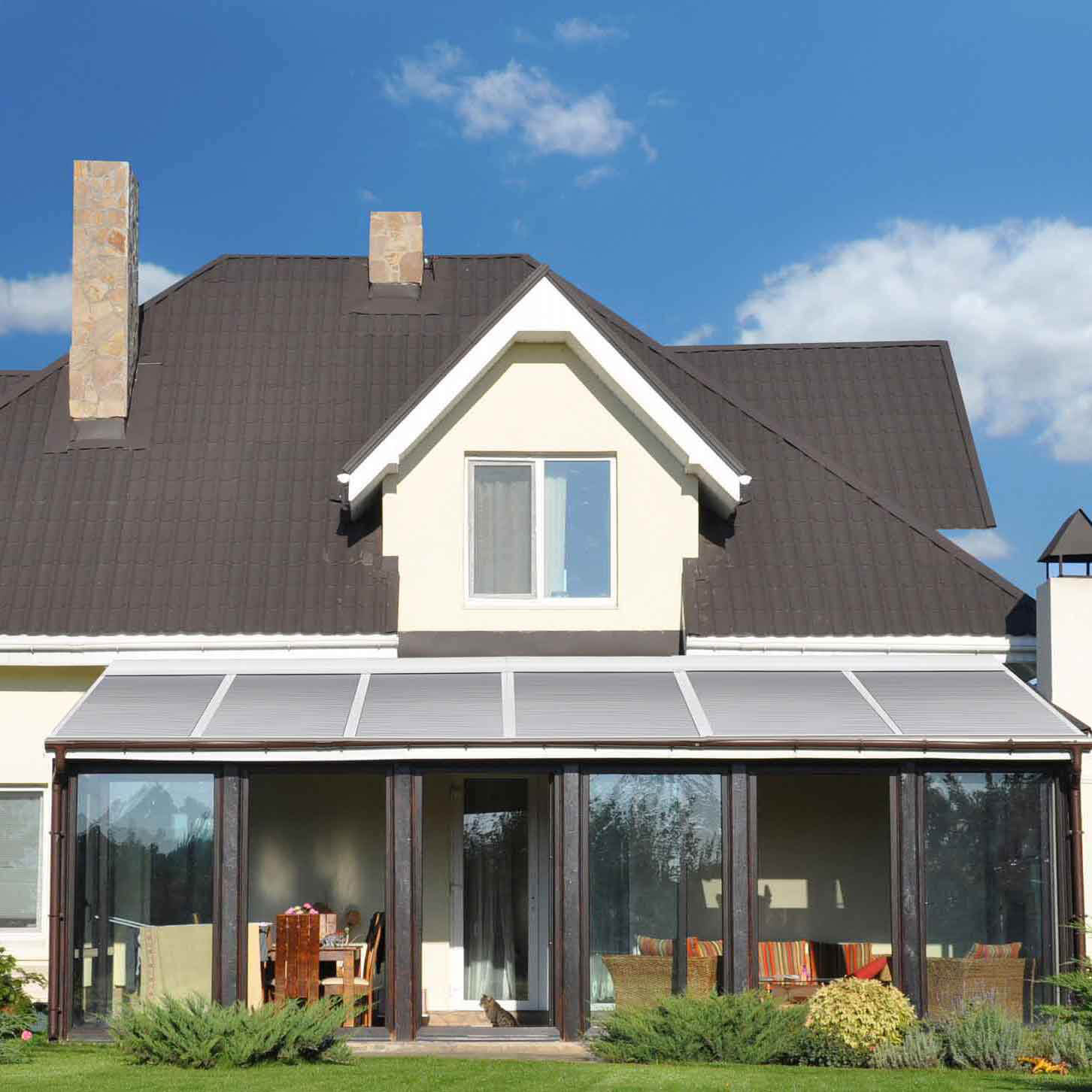

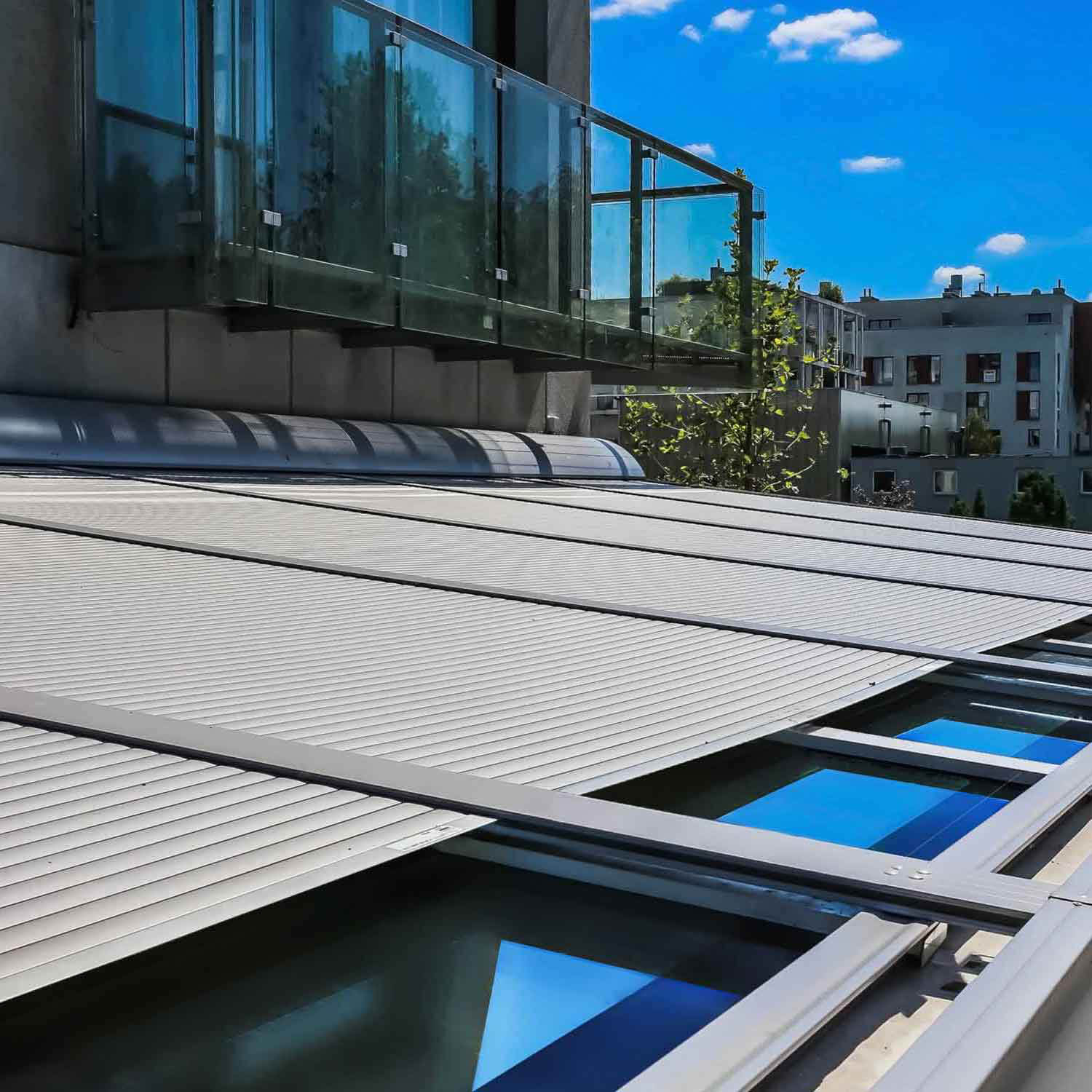

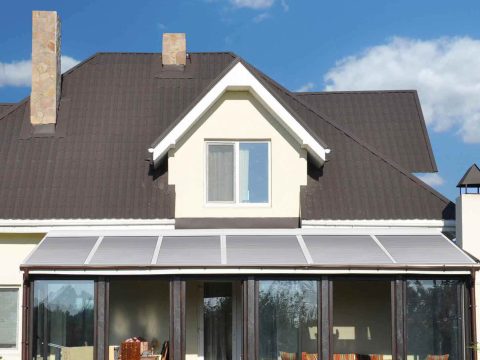

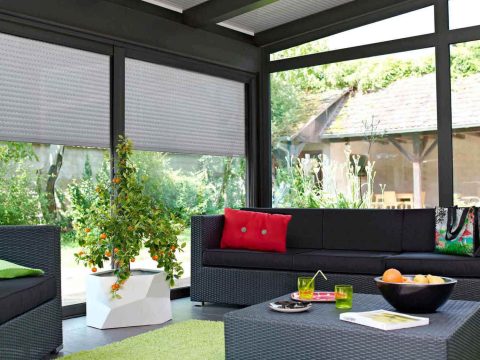

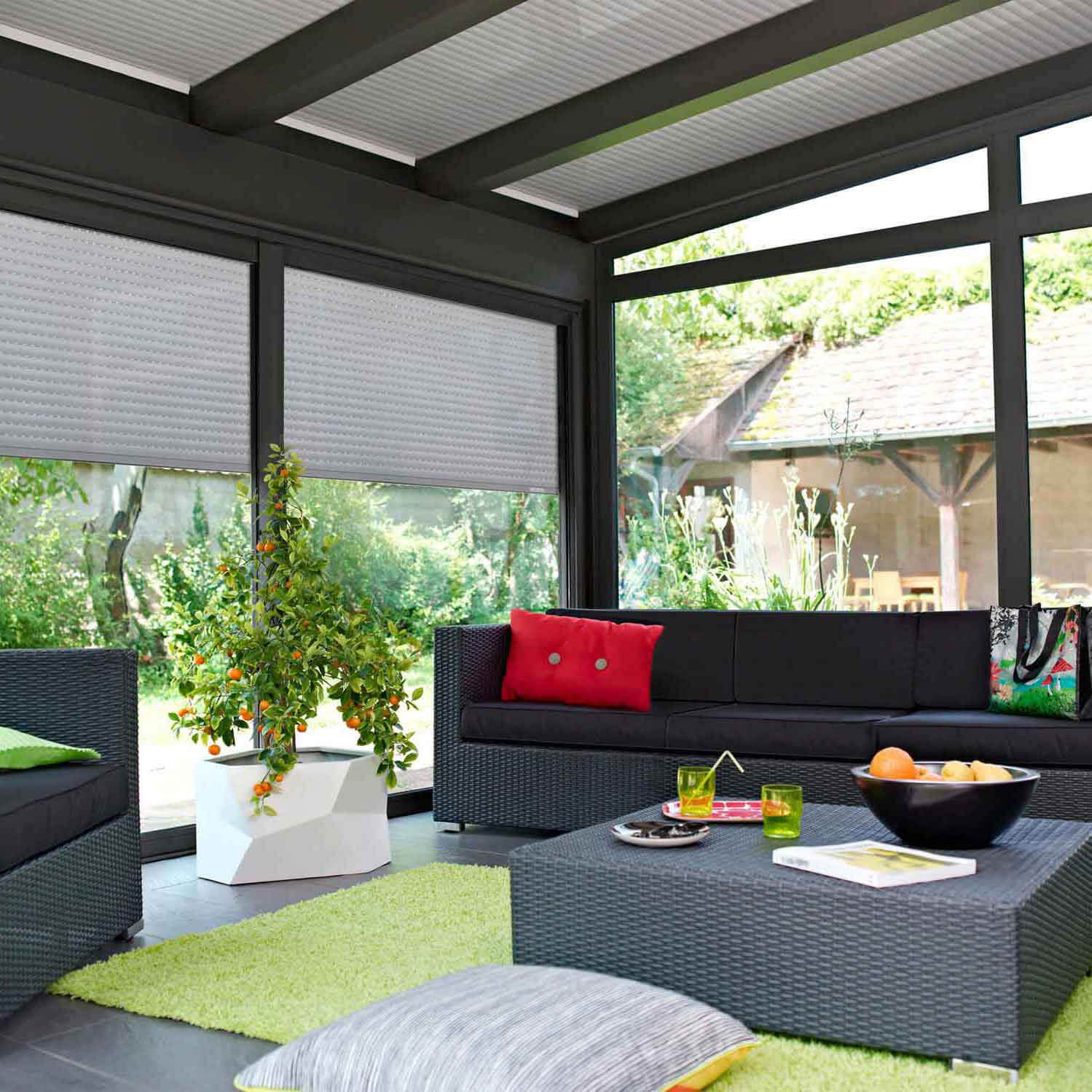

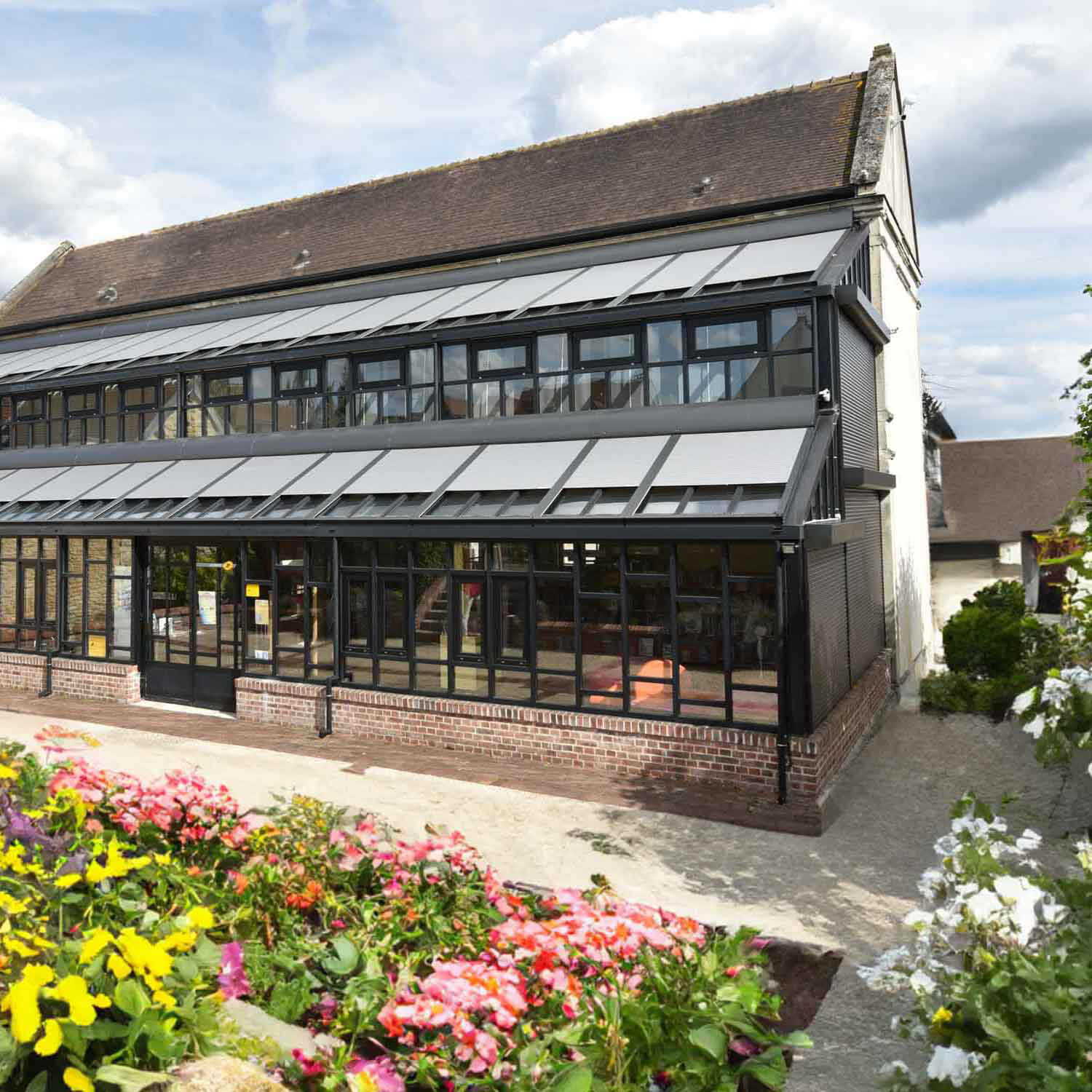

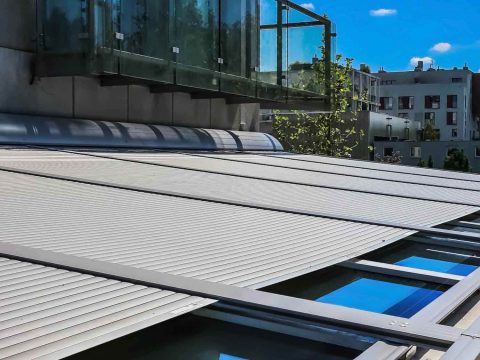

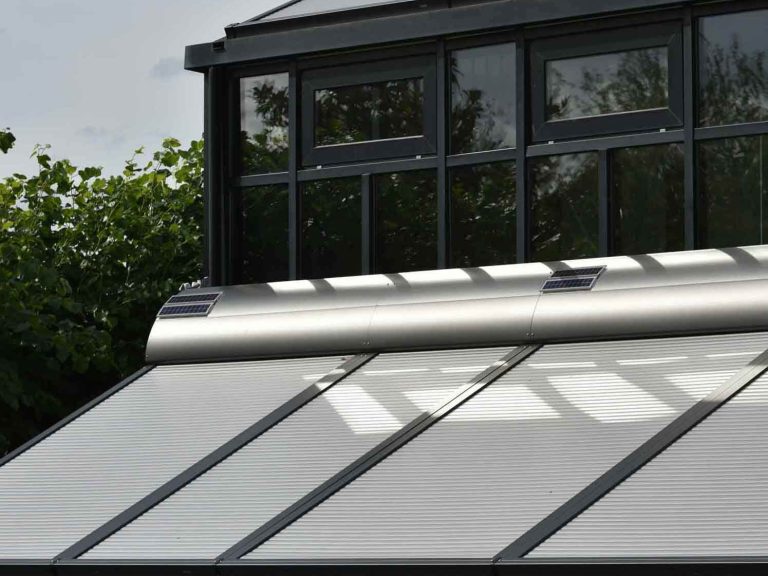

Our projects
Technical data
-
Included with your ROLAX roller shutter:
Included:
- Bubendorff aluminium roller shutters with particularly high corrosion resistance
- Bubendorff solar drive, tested for at least 30,000 openings and closings, silent operation
- Installation by a specialist
- CLIMATE+ mode: intelligent automatic control of the roller shutter
- Up to 10 years carefree package (optional)
- Stylish and ergonomic 3-button remote control
- Minimal environmental impact thanks to the Bubendorff commitment
- Unit price regardless of colour or size (up to 3 meters)
-
Technical data for the ROLAX roller shutter
Product
Dimensions
Length of all fields (max 5 pieces) up to 6 m
Length of a field up to 1.8 m
Fall up to 6 m (distance between high and low)Colours
3 shades for the roller shutter curtain and 7 shades for the framing: more than 21 possible combinations
Drive
Bubendorff solar drive, class III, no electrical power connection required, including CLIMATE+ mode
The drive is designed to adapt perfectly to the Bubendorff roller shuttersSecurity
Automatic locks against lifting
Mechanical lifetime (roller shutter + drive + battery)
30,000 openings and closings.
This is three times more than the highest requirement of the DIN EN 13659 standard (10,000 openings and closings).
Warranty & Carefree package
2 years warranty
+ up to 10 years Carefree package on all components (optional)Production countries
France and Germany
The Bubendorff advantage
- A unique solution for winter gardens
- Excellent thermal protection
- Unsurpassed range: Summer and winter operation without charger
Box
Material
Extruded aluminium
Box dimensions (in mm)
Height (H) x Depth (T):
212 x 370 for a fall from 1000 to 3500
263 x 418 for a fall from 3501 to 6000Solar panels

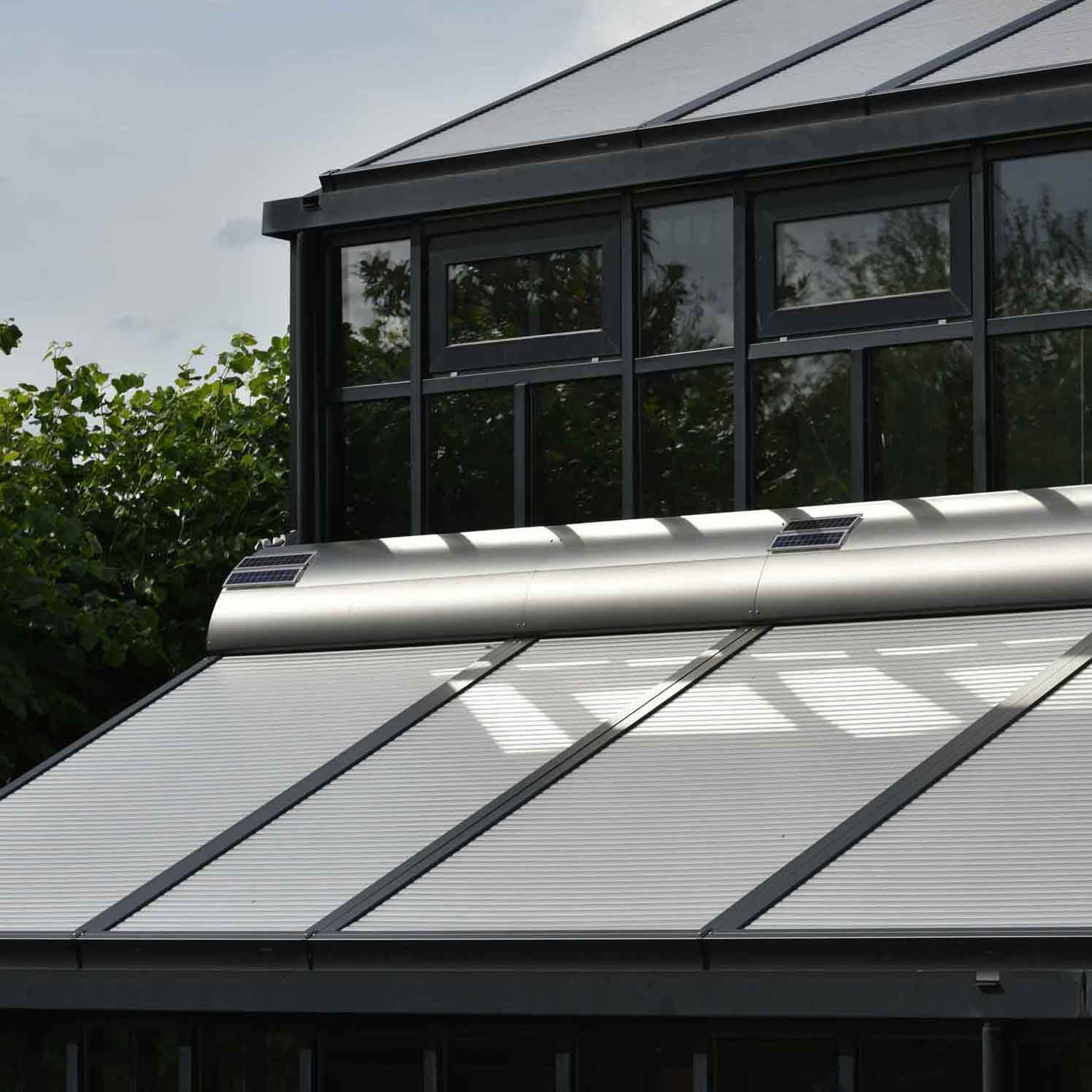

2 solar panels, integrated on the box
The Bubendorff advantage
Box textured, with long service life according to ISO 16474-2:2013
Integrated solar panels
Roller shutter curtain
Material
Roller shutter curtain made of double-walled aluminium, with CFC-free insulating foaming, with an elastomer seal between the slats
Guide pin
Perforated end pieces connected to each other laterally by a stainless steel connecting hook
The Bubendorff advantage
- Reinforced corrosion protection
- Frost resistance thanks to the seals between the slats: the ROLAX remains usable in summer and winter without losing reliability and service life
Guide rails
Material
Guide rails made of extruded aluminium
Seal in the guide rail made of thermoplastic elastomer with long service lifeDimensions (in mm)
65 x 22
The Bubendorff advantage
Guide rails textured, with long service life according to ISO 16474-2:2013
Control and automation
Included remote control
3-button remote
Optional additional remote control
Group remote control to control up to 30 shutters
Optional remote control with timer
Group remote control for controlling up to 30 roller shutters with time programming
Optional intelligent shutters / home automation
iDiamant with Netatmo: Smart Home module for remote control of Bubendorff wireless shutters via smartphone and Legrand Home+control App
Optional wall mount
Wall bracket for 3-button remote control and aditional remote control
The Bubendorff advantage
Aesthetic remote controls. Simple and intuitive control.
CLIMATE+® mode included for optimal thermal insulation
